The fastest and strongest 8-tonner

Mecalac's MCRs are exceptional tracked machines. They are designed to do versatile work in tight spaces. The placement of the unique Mecalac boom next to the cab, provides unprecedented lifting power. With a self-weight of 7.2 (7.6) tons, a load of 3.2 tons can be moved short of the machine. Both track motors are driven separately by a closed hydrostatic travel circuit, just like a shovel. As a result, the MCR can be used for shovel work and drive, jib and slew functions can be loaded simultaneously without sacrificing power and speed on the tracks. The travel speed of the 8 MCR is 10 km/h, enabling rapid travel.

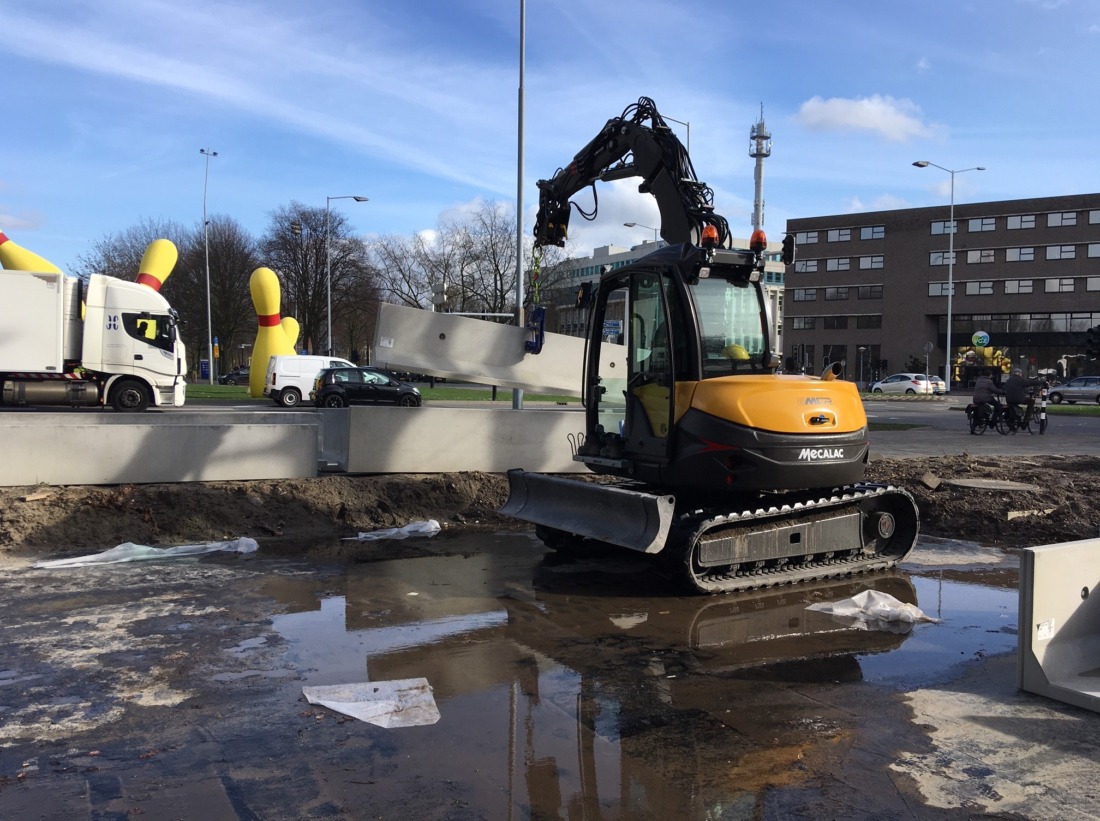

Mecalac 8 MCR
in details

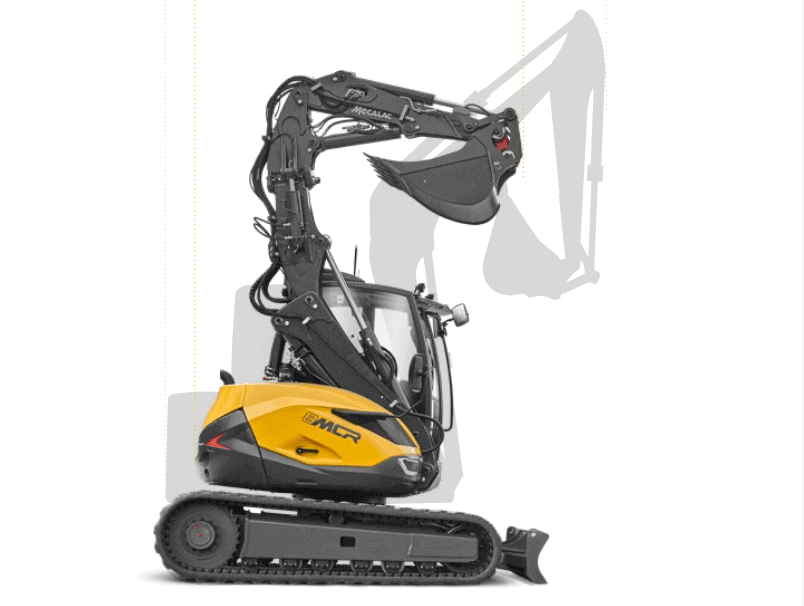

Super compact at 360°, even at the front

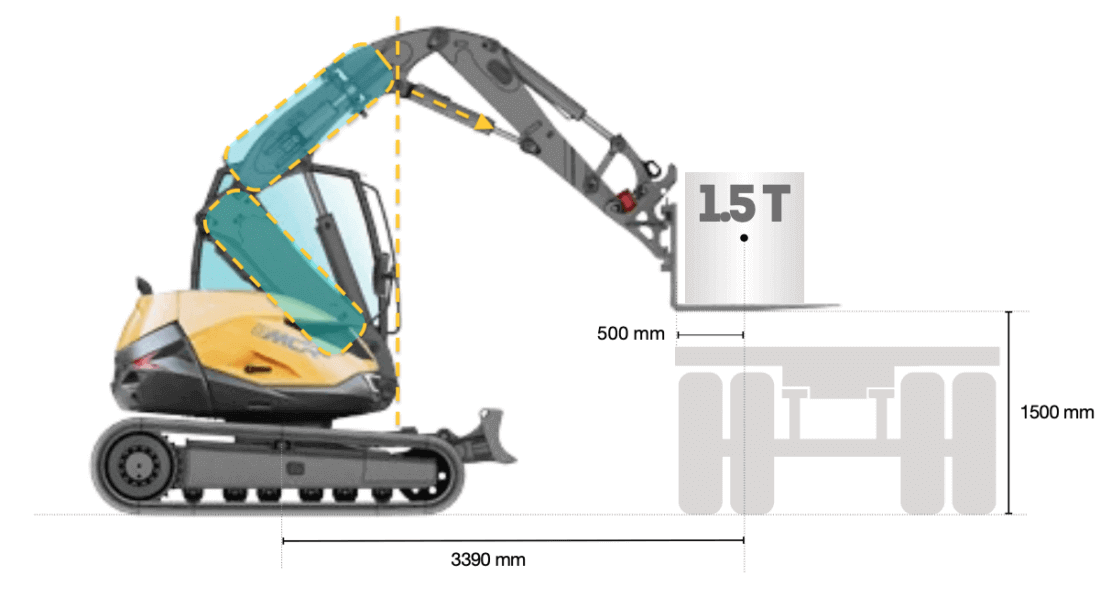

With the first boom section acting as a counterweight, and the powerful outward stroke of the dipper cylinder, a load of 1.5 tons can easily be moved on the dippers.

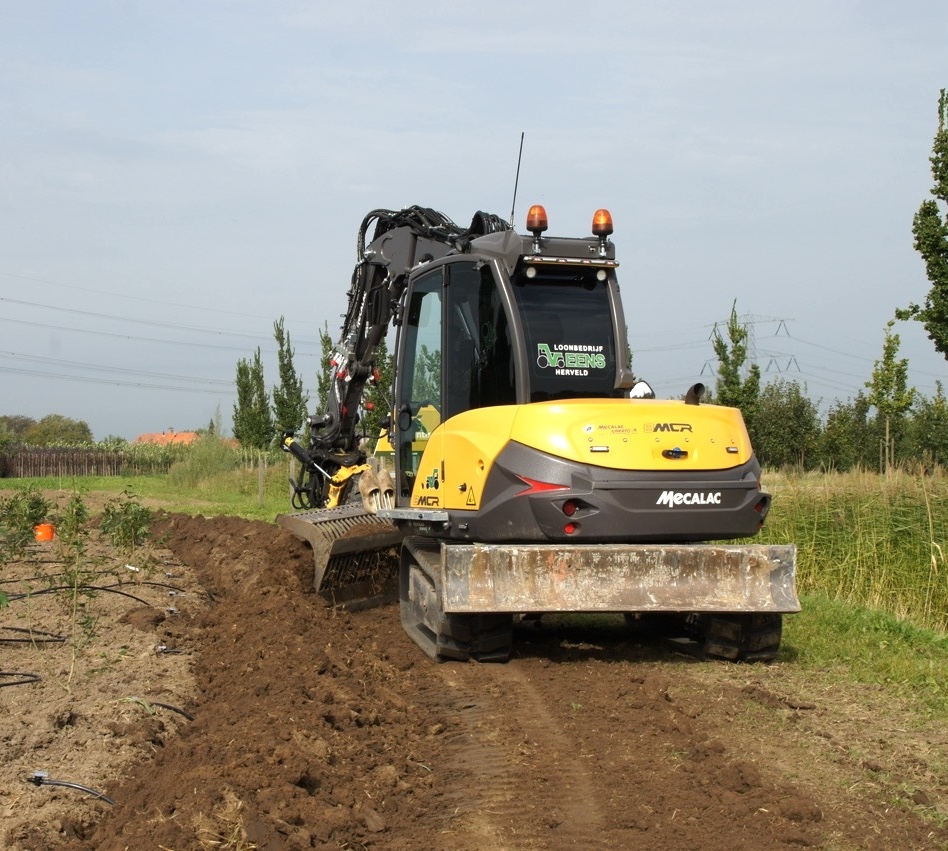

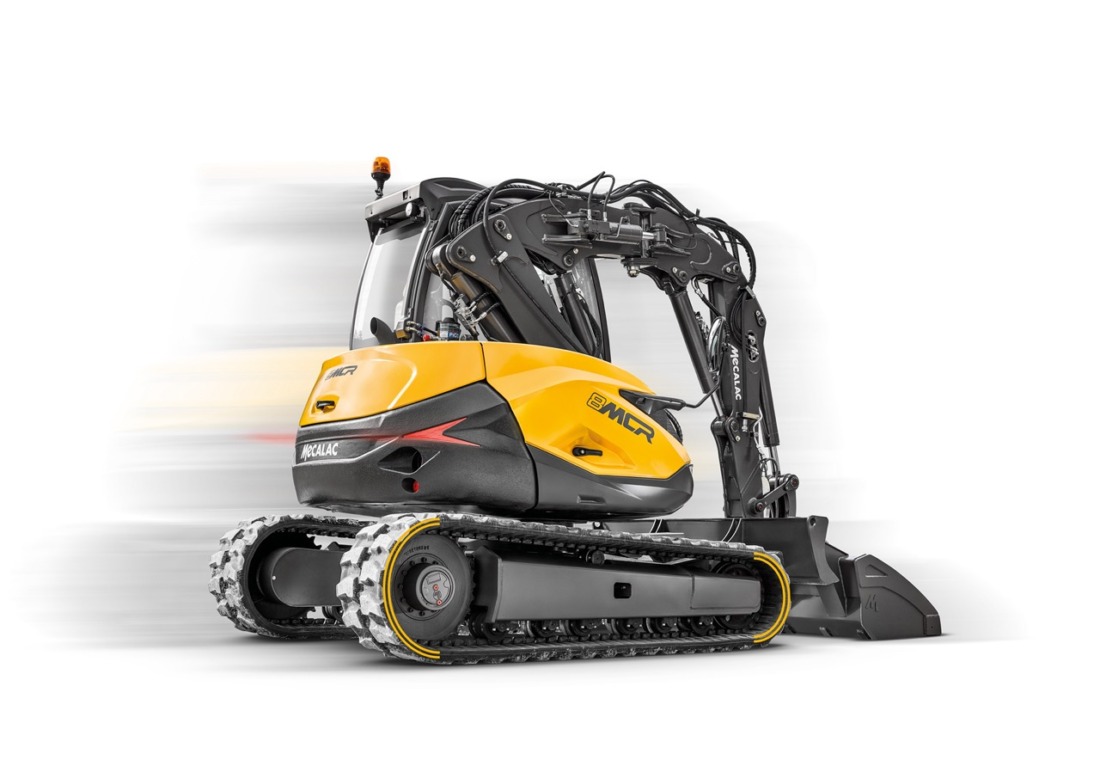

Powerful travel motors move the machine at 10 km/h and enables shovel work

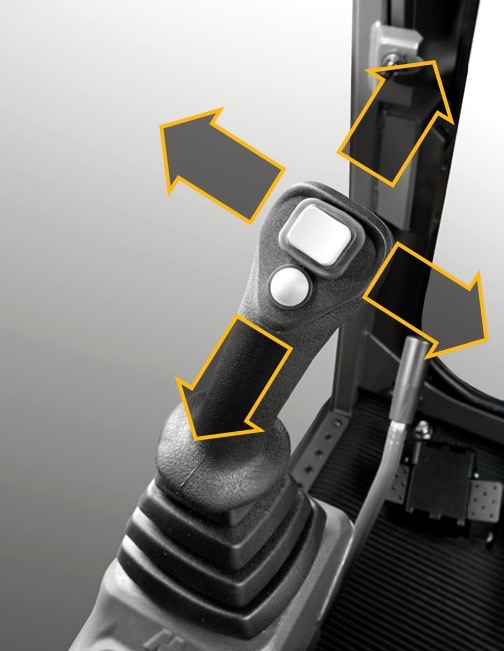

Easy operation of the tracks is possible with the joystick.

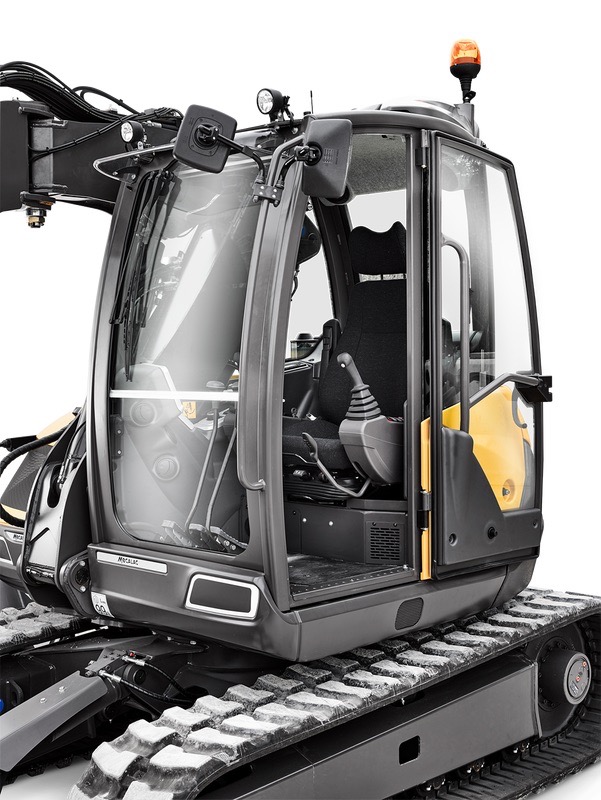

Modern cabin with optimal all-round visibility.

technical specifications

  • Engine

    Deutz TCD 2.9 L4 Stage V / 55.4 kW / 300 Nm

  • Dimensions

    Net weight 7200 KG, Width 2100 mm, Height 2751 mm

  • Caterpillars

    Comes standard on 450mm rubber tracks. Soil pressure 0.38 kg/cm2

    Optional 600mm rubber tracks. Ground pressure 0.30 kg/cm2

  • Quick change

    Type Mecalac Connect, optional MS50, CW10 or Engcon QS45

  • Standard equipped with

    Closed hydrostatic travel drive 10 km/h, drive on joystick, maximum travel speed control, working mode change excavator/skid loader, swing pedal, hose break on lift cylinder, hydraulic auxiliary function proportionally adjustable, 6 hydraulic attachments programmable, air conditioning, working lights on cab.

  • Optional

    Additional counterweight +425 KG, demolition/sorting function, swivel/tilt, hose break valves, automatic central lubrication system, basket function 40L, valve function 120L, toolbox in undercarriage, fuel filling pump, air conditioning, LED work lights, running board with clog support, and a wide assortment of equipment items.

In Action

PRACTICE

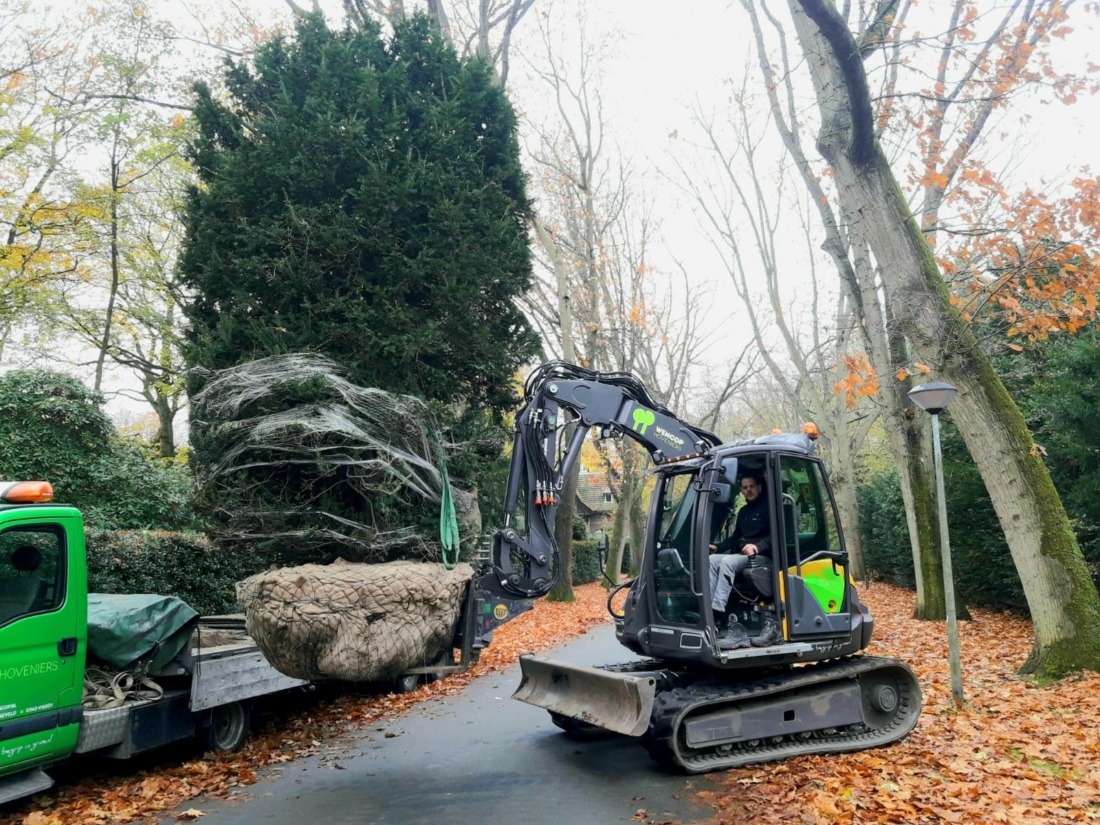

Lifting capacity 3.2 tons at 2.0m over entire swing range.

Compact boom and large working range: is strong near, far, and in height.

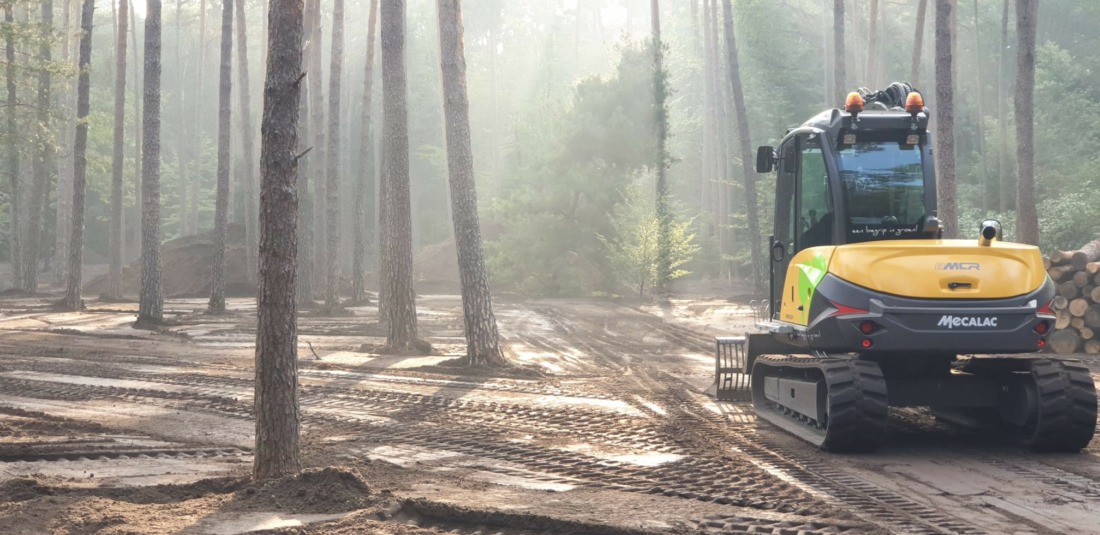

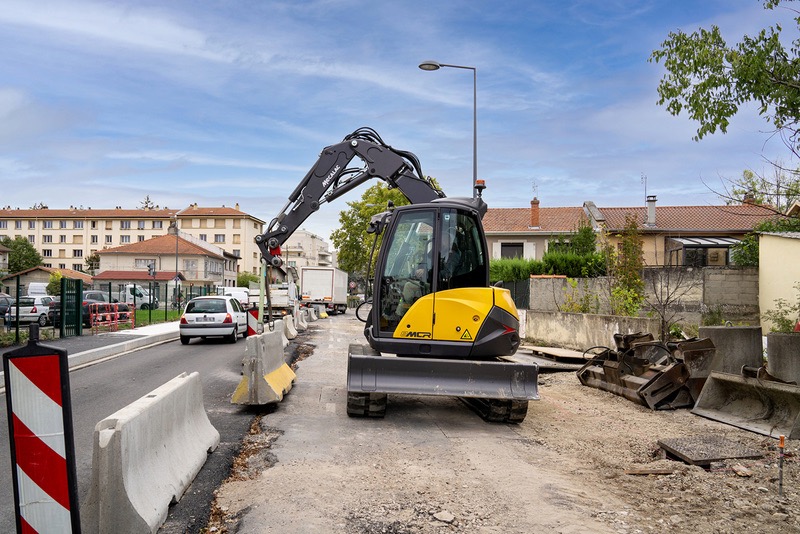

Compact and maneuverable in small spaces

Closed hydraulic travel circuit and Load Sensing labor pump allows simultaneous travel and boom movement.

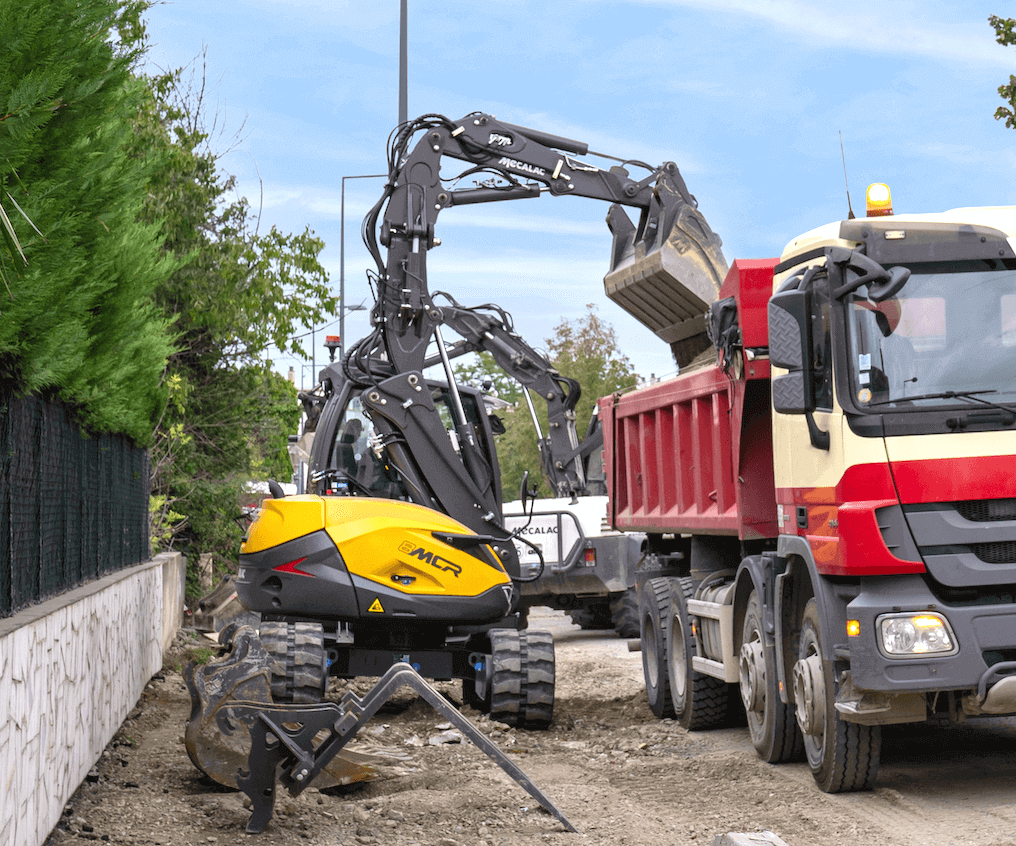

High productivity due to high travel speed and use of large bucket capacity

The powerful driving gear and strong boom make many applications possible
