Big in limited space

A load of 6000kg can be moved close to the machine.
The uniquely positioned lifting cylinders behind the boom ensure
that lifting force remains strong throughout the entire lifting range. The very short swing radius of the counterweight and the ability to fully retract the boom and place it next to the cab ensure that compact really is compact.

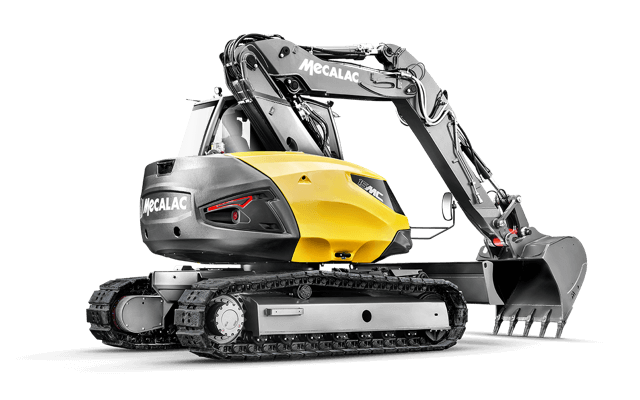

Mecalac 15 MC
in details

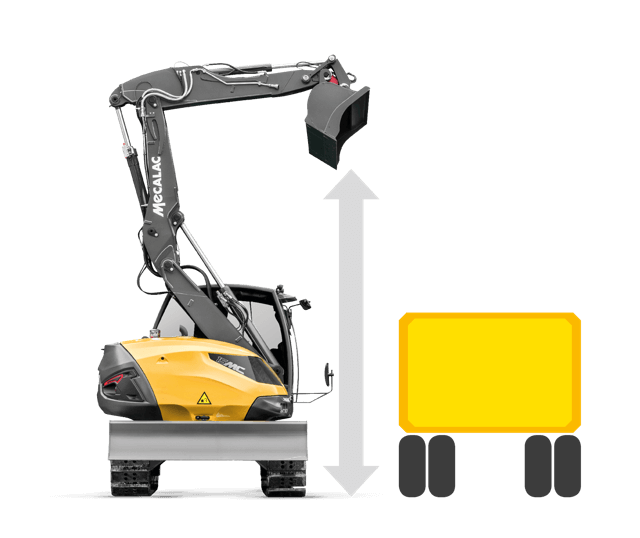

Super compact, even at the front

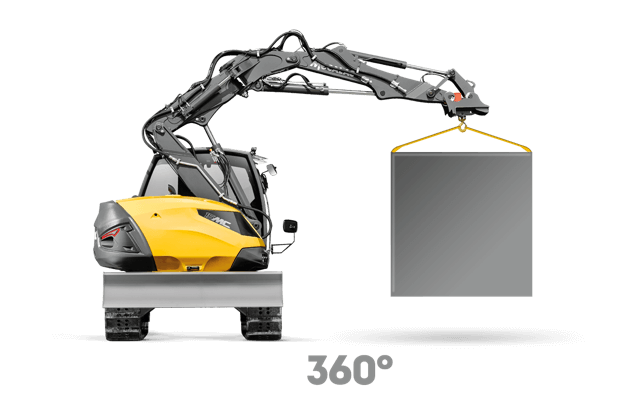

With the first boom section acting as a counterweight, and the powerful outward stroke of the dipper cylinder, a load of 6.0 tons can be moved around the machine.

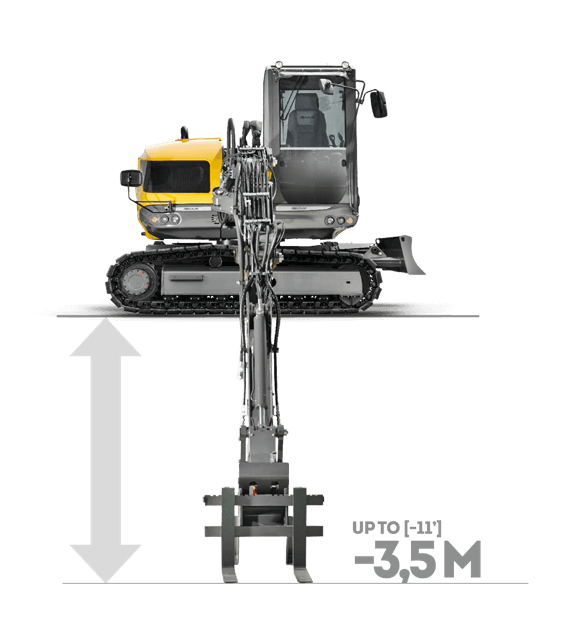

Lift force remains available over the entire lifting range, enabling work up to 3.5 meters below ground level.

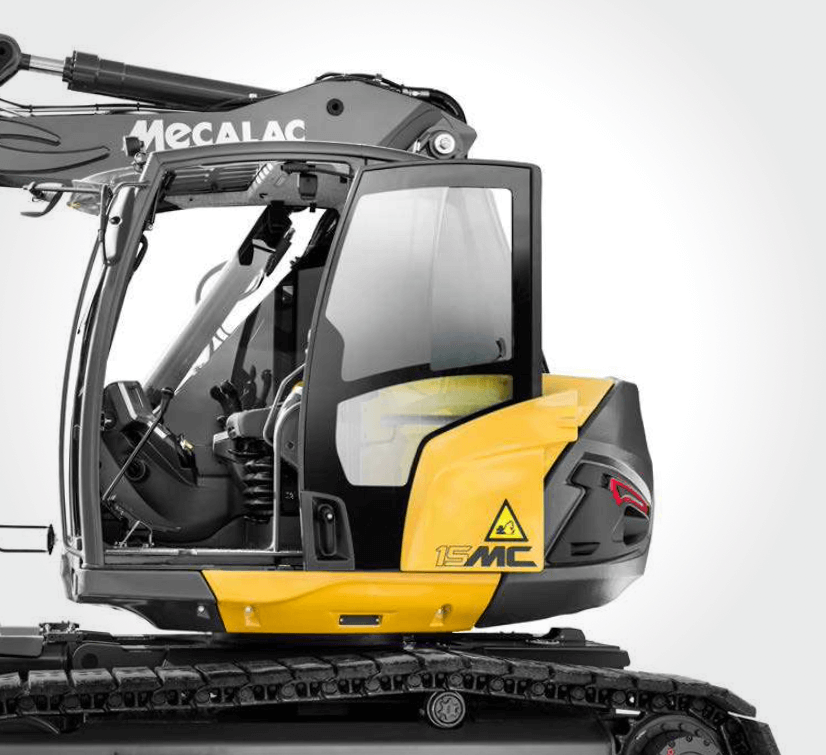

The cabin is equipped with a sliding door. Against a wall or an obstacle, it remains possible to open or close the door.

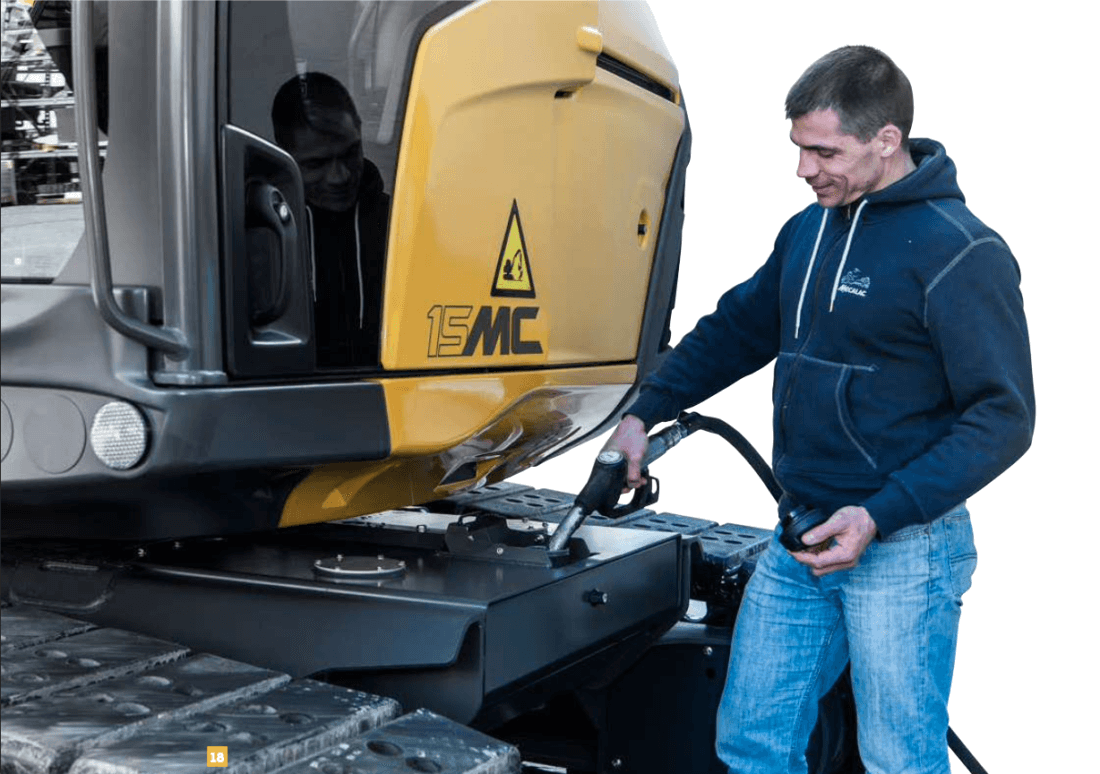

For safe and easy refueling, the diesel tank is placed in the undercarriage

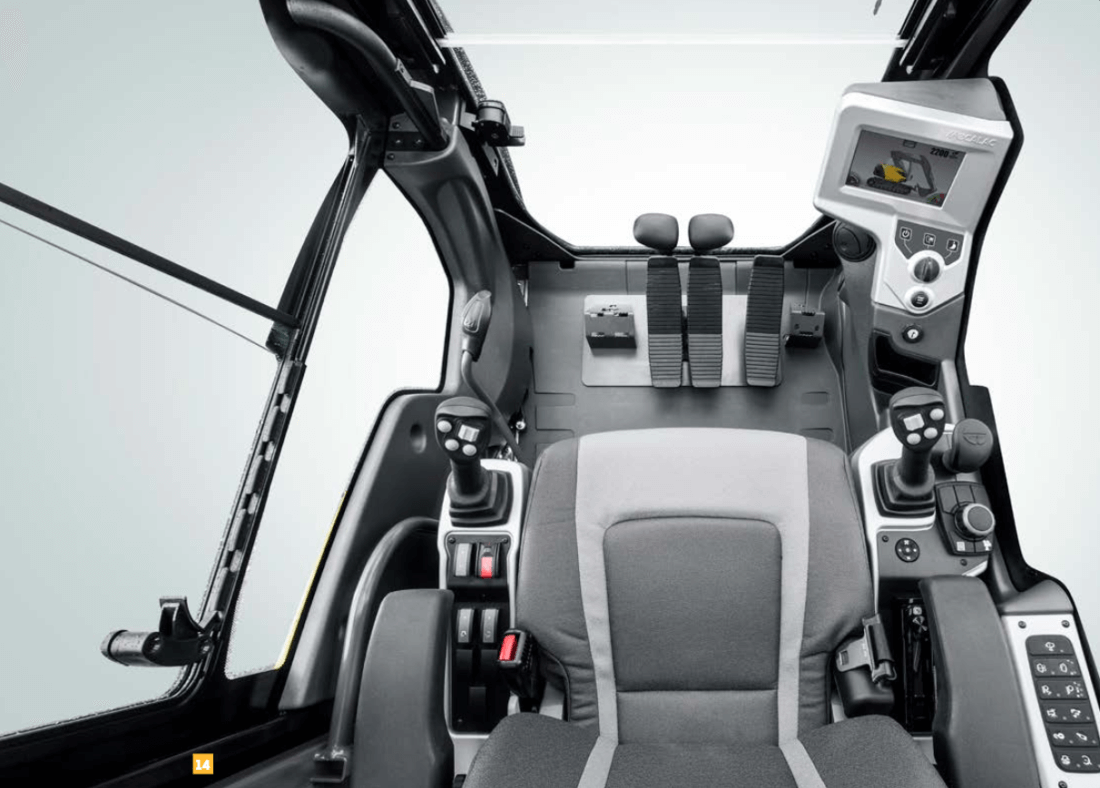

A comfortable cabin whose windshield can be fully opened.

technical specifications

  • Engine

    Deutz TCD 3.6 Stage V / 100 kW / 500 Nm

  • Dimensions

    Dead weight 15,430 KG, Width 2600 mm, Height 3480 mm, Radius counterweight 1570 mm.

  • Caterpillars

    Standard 500mm steel.

    Optional 500mm full rubber, or 600mm steel

  • Quick change

    Type Mecalac Connect, optional MS60 or Engcon QS60

  • Standard equipped with

    Sliding blade, Diesel tank in undercarriage, 1st and 2nd additional function proportional. adjustable, air conditioning, camera behind and to the side of the machine, LED working lights on boom and cab.

  • Optional

    Mecalac boom, Continuous flow on additional function, automatic central lubrication system, wide range of equipment pieces.

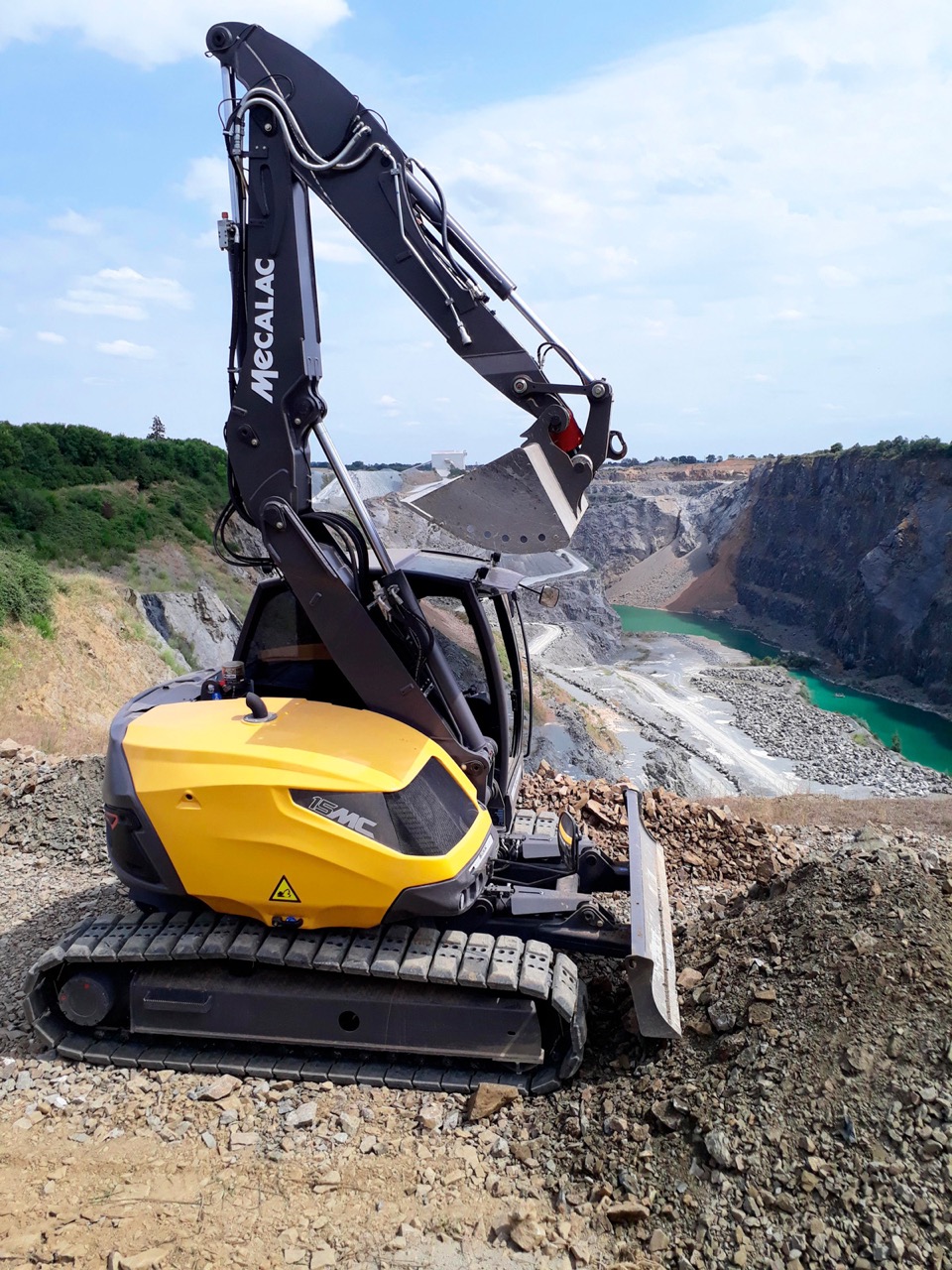

In Action

PRACTICE

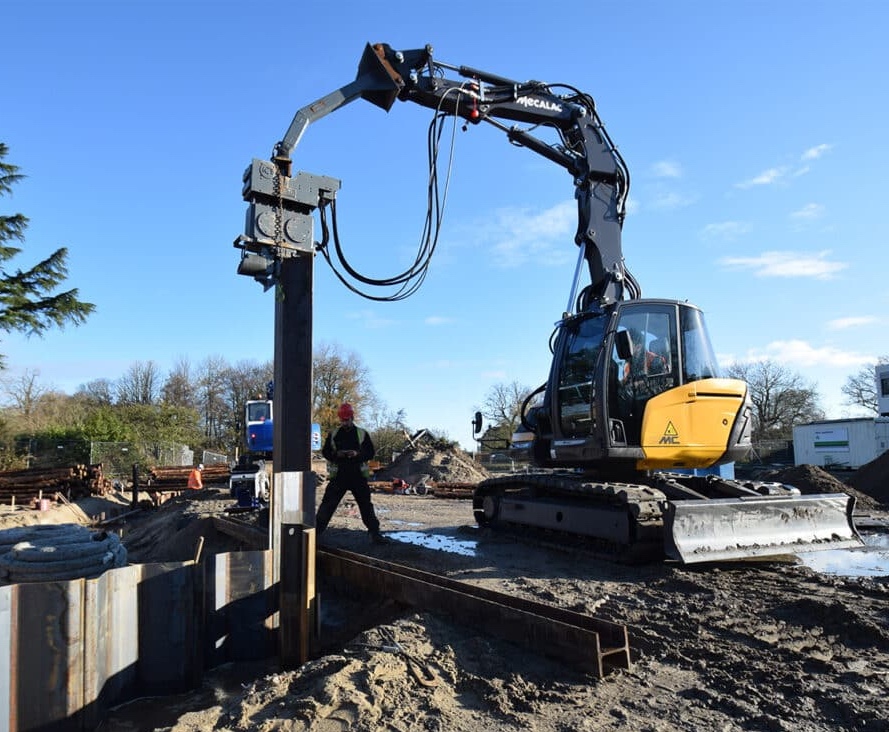

The working range of the Mecalac boom and the constant force distribution of the lifting cylinders make the 15 MC very suitable for foundation engineering.

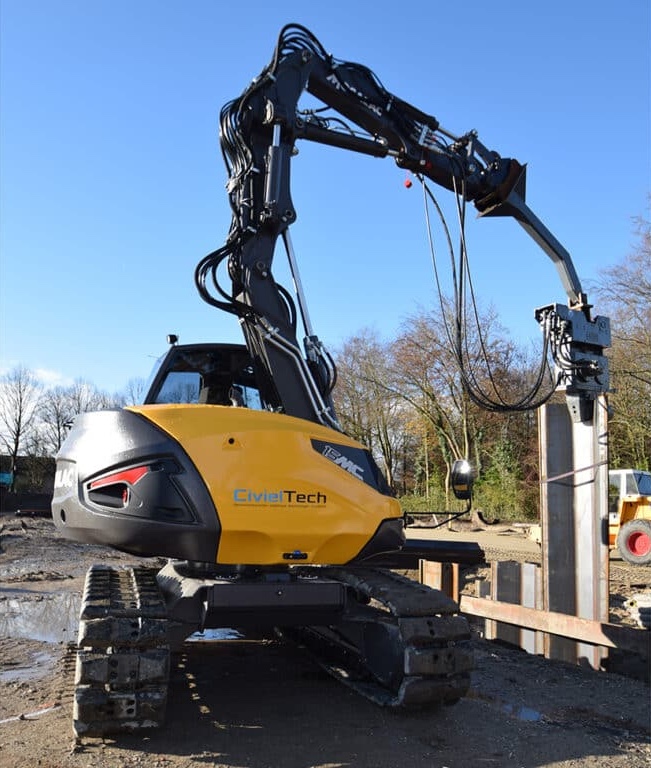

A true inside turner: the radius of the counterweight from center of turntable is 1570 mm.

The positioning of the boom close to and above the cab makes the 15 MC suitable for foundation engineering.
