The fastest and strongest 10-tonner

Mecalac's MCRs are exceptional tracked machines. They are designed to do versatile work in tight spaces. The placement of the unique Mecalac boom next to the cab, provides unprecedented lifting power. With a self-weight of 9.4 (10.0) tons, a load of 4.0 tons can be moved short of the machine. Both track motors are driven separately by a closed hydrostatic travel circuit, just like a shovel. As a result, the MCR can be used for shovel work and drive, jib and slew functions can be loaded simultaneously without sacrificing power and speed on the tracks. The travel speed of the 10 MCR is 9 km/h, enabling rapid travel.

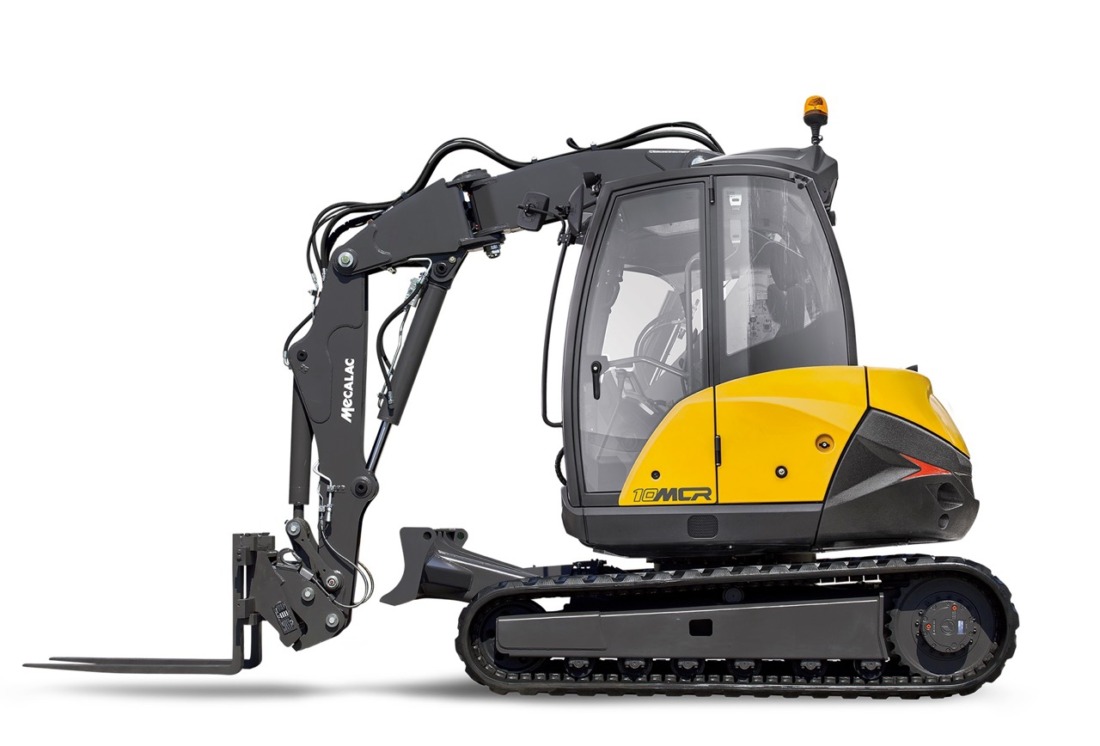

Mecalac 10 MCR
in details

Super compact, even at the front

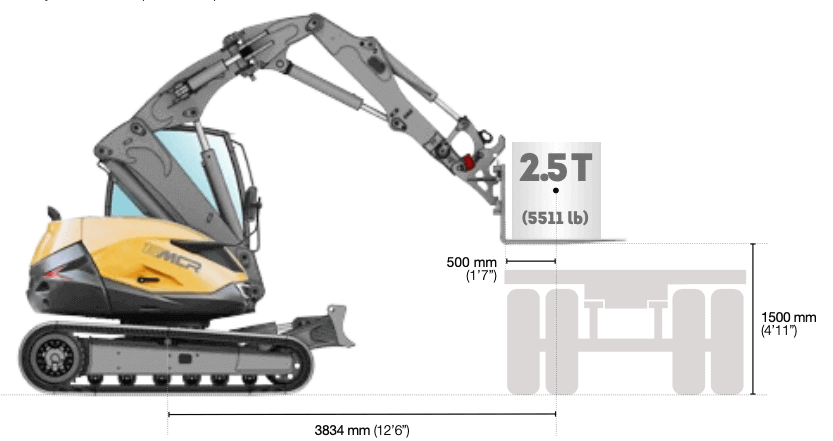

With the first boom section acting as a counterweight, and the powerful output stroke of the scoop cylinder, a load of 2.5 tons can be moved on the scoops.

Powerful travel motors move the machine at 9 km/h and enables shovel work

Easy operation of the tracks is possible with the joystick.

Spacious cabin and optimal visibility all around.

technical specifications

  • Engine

    Deutz TCD 3.6 L4 Stage V | 55.4 kW / 75.3 HP | 405 Nm

  • Dimensions

    Width 2300 mm, Height 2836 mm

  • Caterpillars

    Comes standard on 450mm rubber tracks. Soil pressure 0.46 kg/cm2

    Optional 600mm rubber tracks. Ground pressure 0.36 kg/cm2

  • Quick change

    Type Mecalac Connect, optional MS50, CW10 or Engcon QS45

  • Standard equipped with

    Closed hydrostatic travel drive 9 km/h, drive on joystick, maximum travel speed control, working mode change digger/skid loader, swing pedal, hose break on lift cylinder, hydraulic auxiliary function proportionally adjustable, 6 hydraulic attachments programmable, air conditioning, camera on right side, and working lights on cab.

  • Optional

    Additional counterweight +590 KG, demolition/sorting function, swivel/tilt, hose break valves, automatic central lubrication system, basket function 40L, valve function 120L, toolbox in undercarriage, fuel filling pump, air conditioning, LED work lights, running board with clog support, and a wide assortment of equipment items.

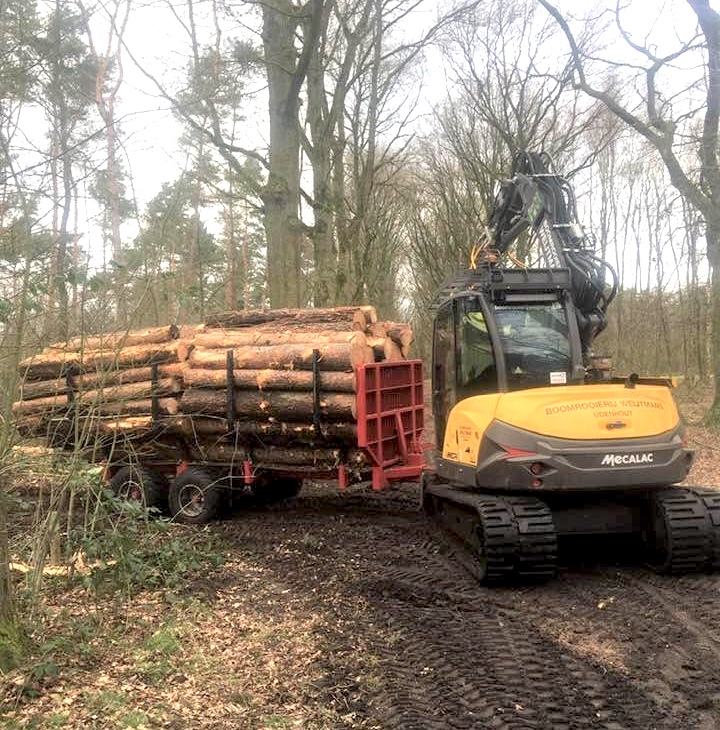

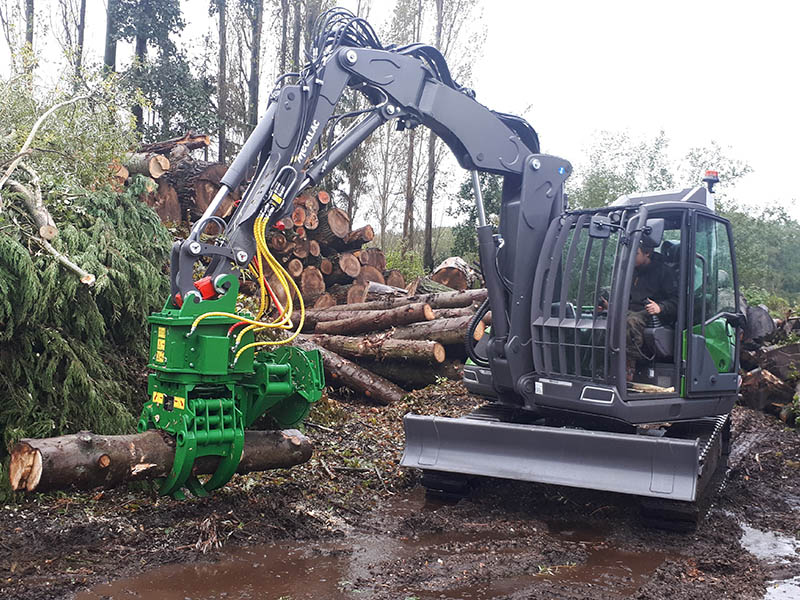

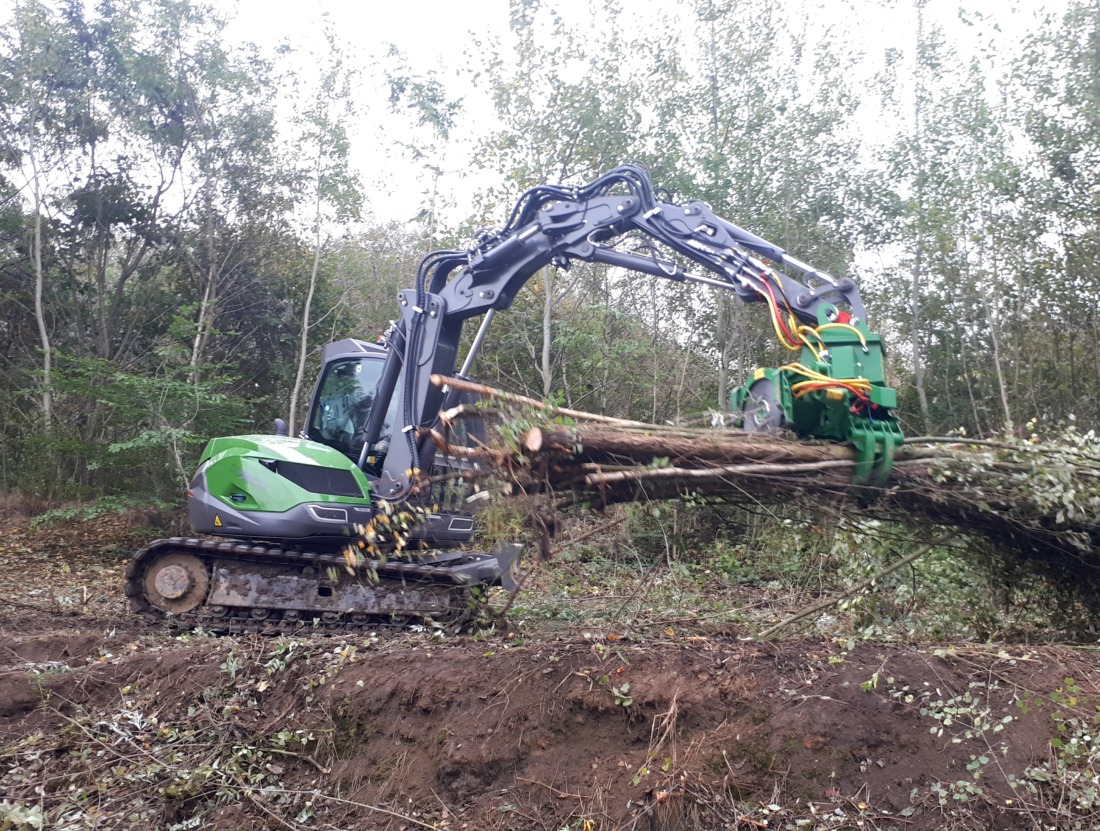

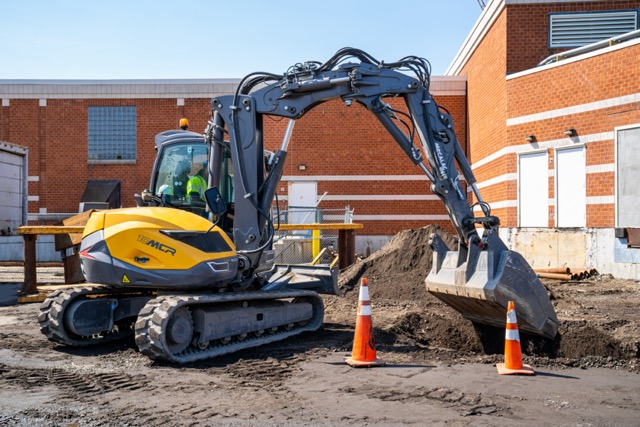

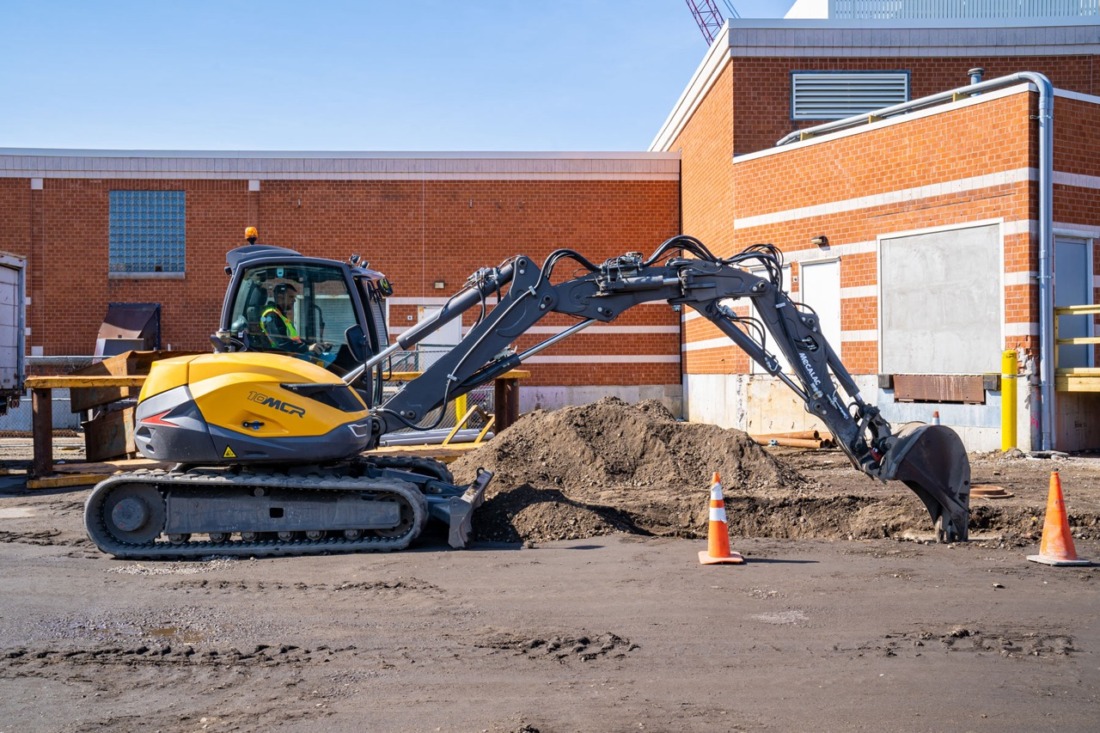

In Action

PRACTICE

Lifting capacity 4.0 tons at 2.5m over entire swing range.

Compact boom and large working range: is strong near, far, and in height.

Compact and maneuverable in small spaces

High productivity due to high travel speed and use of large bucket capacity

Closed hydraulic travel circuit and Load Sensing labor pump allows simultaneous travel and boom movement
