Low center of gravity because the turntable is located in the chassis, with no loss of shuttle space for the wheels.

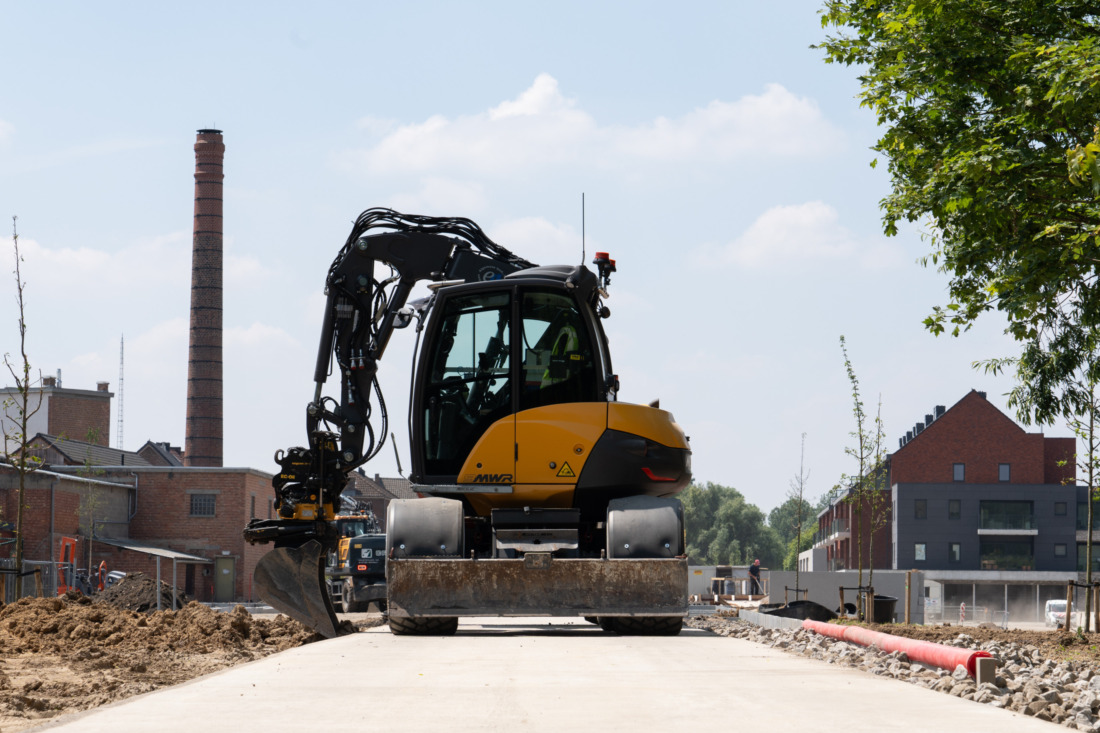

The Mecalac MWR series is designed for versatile work where a compact and strong machine is needed. The low center of gravity and the unique Mecalac boom next to the cab provide square stability and unprecedented lifting capacity. A load of more than 3 tons can be moved easily and close to the machine without being surprised in its stability. The travel drive is separate from the working hydraulics and, like a shovel, is driven by a hydrostat. The 4-wheel steered axles are also self-locking. This makes any terrain suitable for the 9 MWR! In short, a very strong, compact, stable and all-terrain machine suitable for crane and shovel work.
Low center of gravity because the turntable is located in the chassis, with no loss of shuttle space for the wheels.
The strong outward movement of the dipperstick cylinder provides unprecedented lifting and pushing forces. The boom acts as a counterweight.
The unique boom design allows you to work truly compact without compromising range.
Powerful travel gear and dipperstick make the machine suitable for shovel work.
The fuel tank is located in the undercarriage. Refueling and daily maintenance can be done from the ground.
Low step with large steps and cleverly placed handles makes boarding safe and easy
Modern designed and spacious cabin with lots of glass and a sliding window in the door. The front window can be opened completely. The steering column can be adjusted at 3 points.
Deutz TCD 2.9 L4 Stage V / 55.4 kW / 300 Nm
Dead weight 8000 KG, Width 2310 mm, Height 2957 mm, Turning radius 3560 mm
Standard delivered with 500/45-20 tires, optional: wide tires 560/45 R22.5 or 600/40 R22.5
Type Mecalac Connect, optional MS50, CW10 or Engcon QS45
35 km/h, closed hydrostatic drive with shift-on-fly gearbox, 4-wheel steering, self-locking front and rear axles, parallel slide blade, direction reversal function, cruise control, maximum speed control, 1st and 2nd auxiliary function proportionally adjustable, 6 hydraulic attachments programmable, hose break for crane book, air conditioning, toolbox in undercarriage, side camera, DAB+ radio and beacon.
Mudguards set, load compensator, outriggers, various towing hooks, tipper function, swivel tilt, additional hydraulic functions, automatic central lubrication system on upper and lower carriage, various LED working lights, bluetooth car kit, running board with clog support, wide assortment of equipment pieces.
Two machines in one: cranes and shoveling
Square stable over entire 360° swivel range.
Compact boom and large working range: is strong near, far, and in height.
Easy loading truck can come from near high
Compact and maneuverable in small spaces
The stability and lifting force enables many applications
Get the most out of your machine with our attachments. We have an attachment for every job. Ample stock, new and used. We are also happy to advise you on customization.
