Mecalac 12 MTX | Multifunction all-rounder for earthmoving

The multipurpose
earthmoving machine

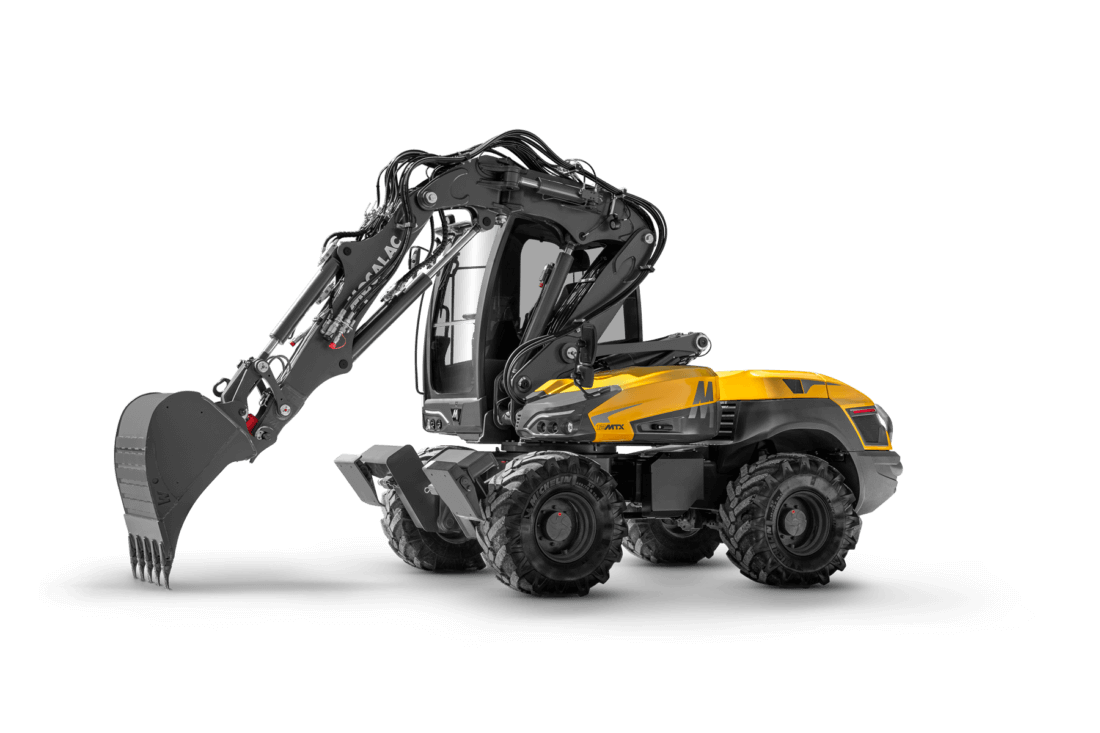

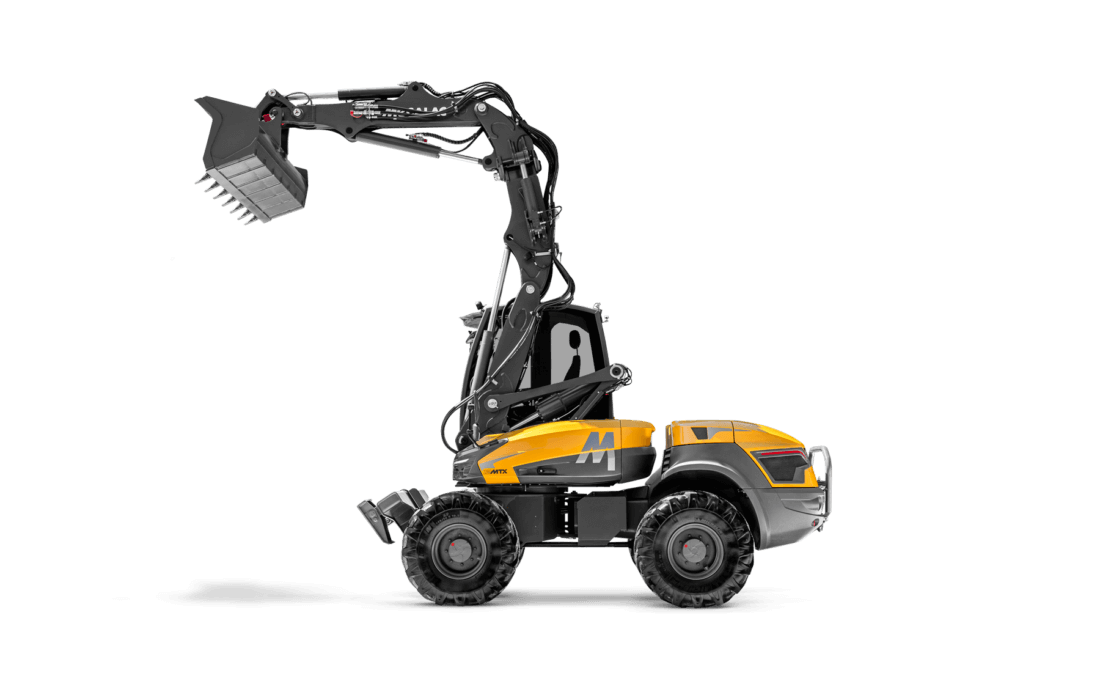

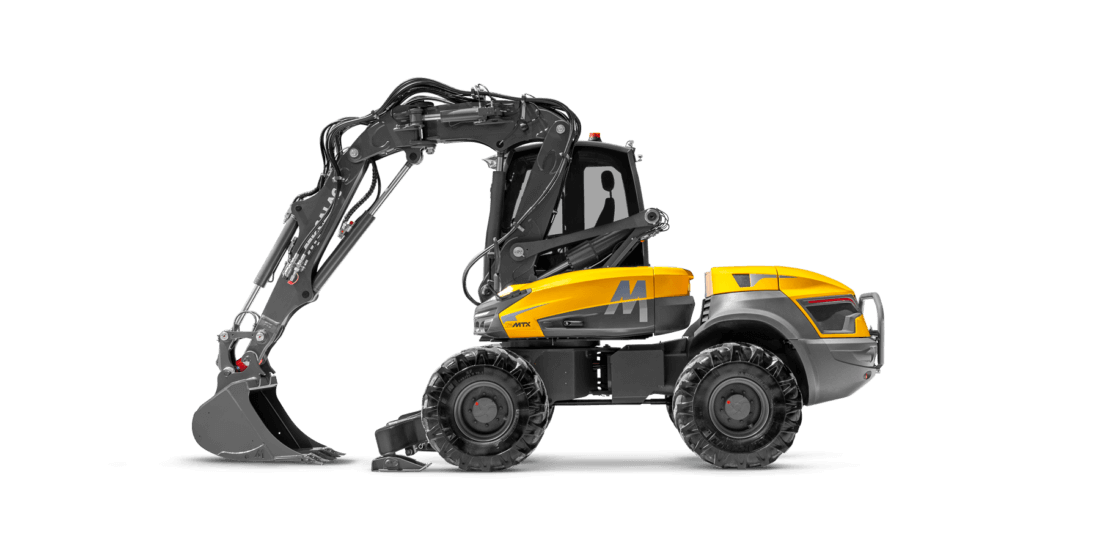

The 12 MTX is a strong yet compact and maneuverable earthmoving machine that combines the good features of a mobile excavator and articulated loader and tool carrier. The machine is equipped with the unique Mecalac boom with which all excavation work can be done like a mobile excavator. As standard, the boom is equipped with an offset that makes it possible to dig a trench outside the machine. As an articulating and swing loader, the underlying scoop cylinder provides unprecedented pushing force. The robust lifting cylinder constructed in a parallelogram provides a large lifting force of thick 4 tons. The articulated undercarriage provides unique off-road capability. Of course, this Mecalac is also equipped with the closed hydraulic drive system like a shovel. The labor pump for the boom movement is a separate LS pump. In short, this machine provides itself with all functionalities, making it an ideal all-rounder.

Get the brochure!

Mecalac 12 MTX
in details

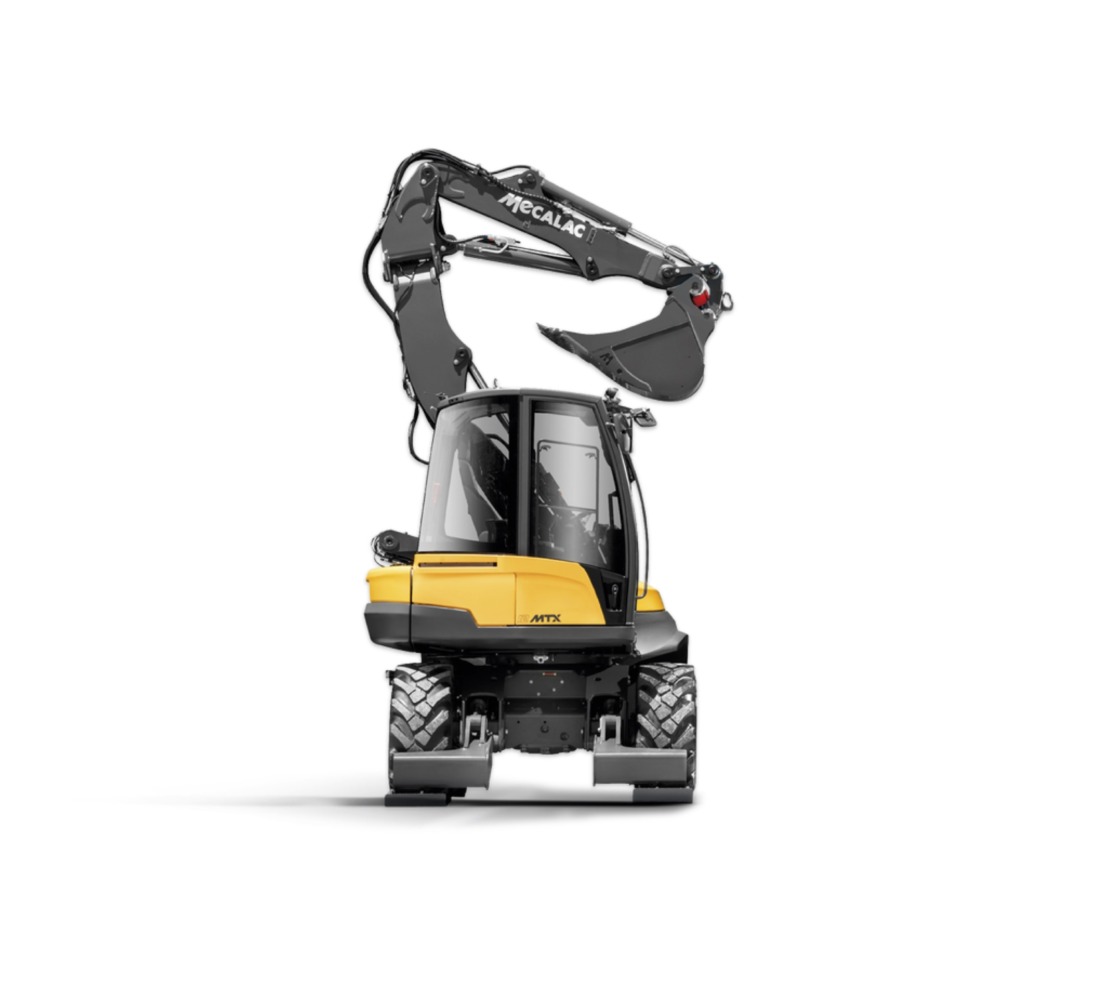

Working very close to the machine without protruding boom parts

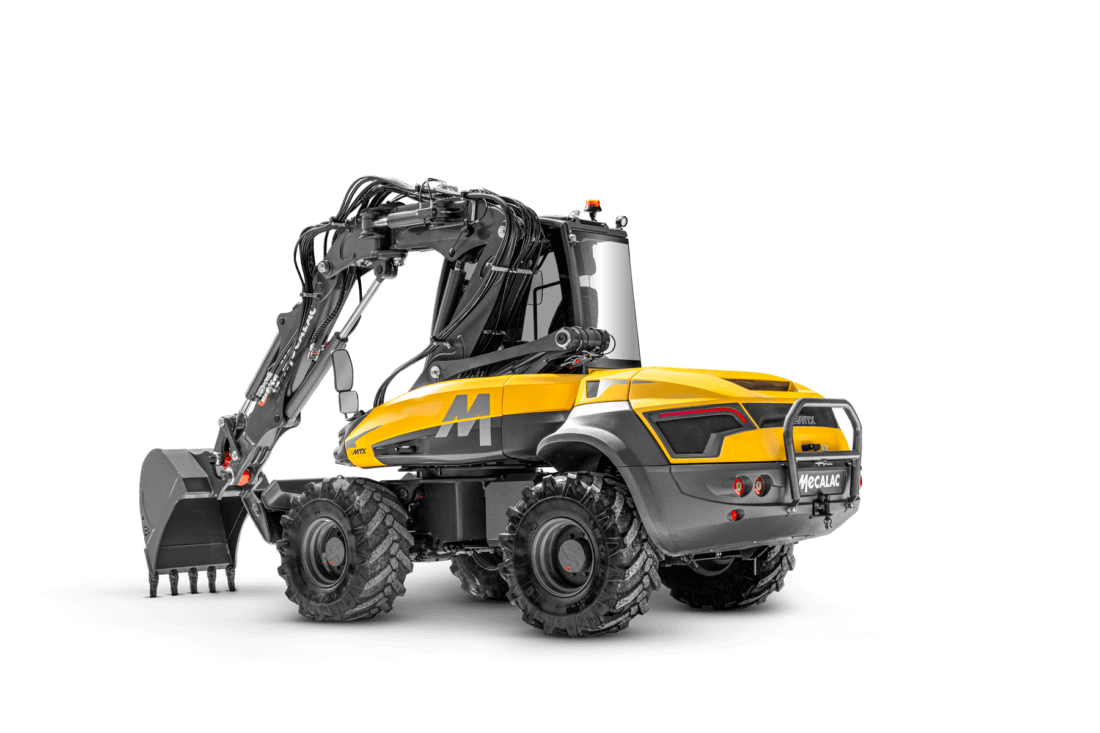

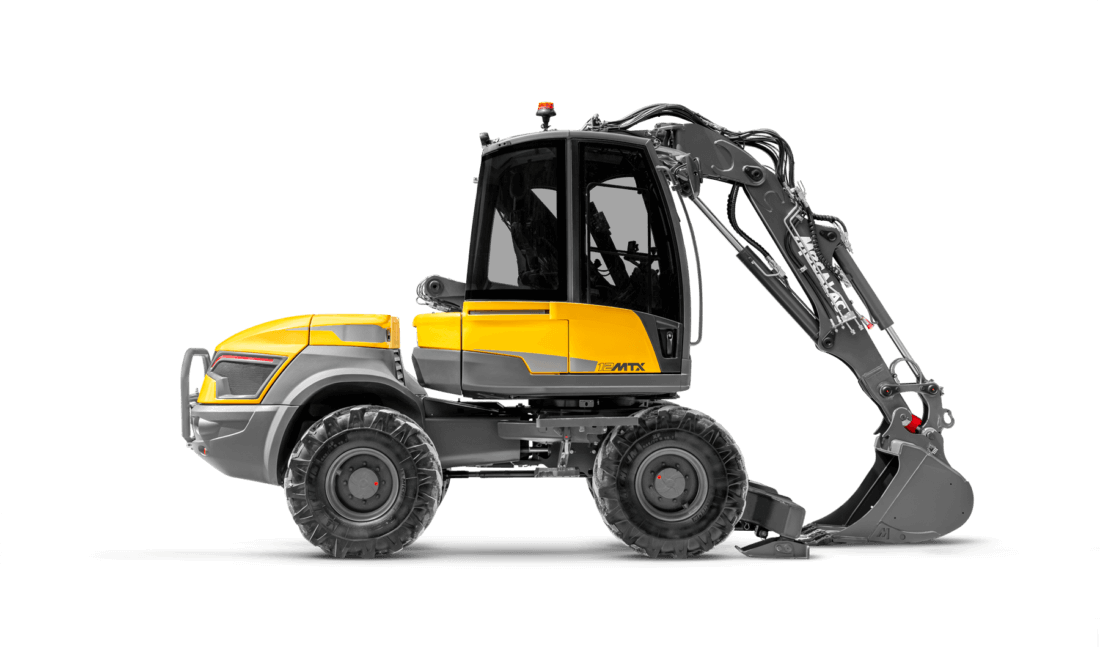

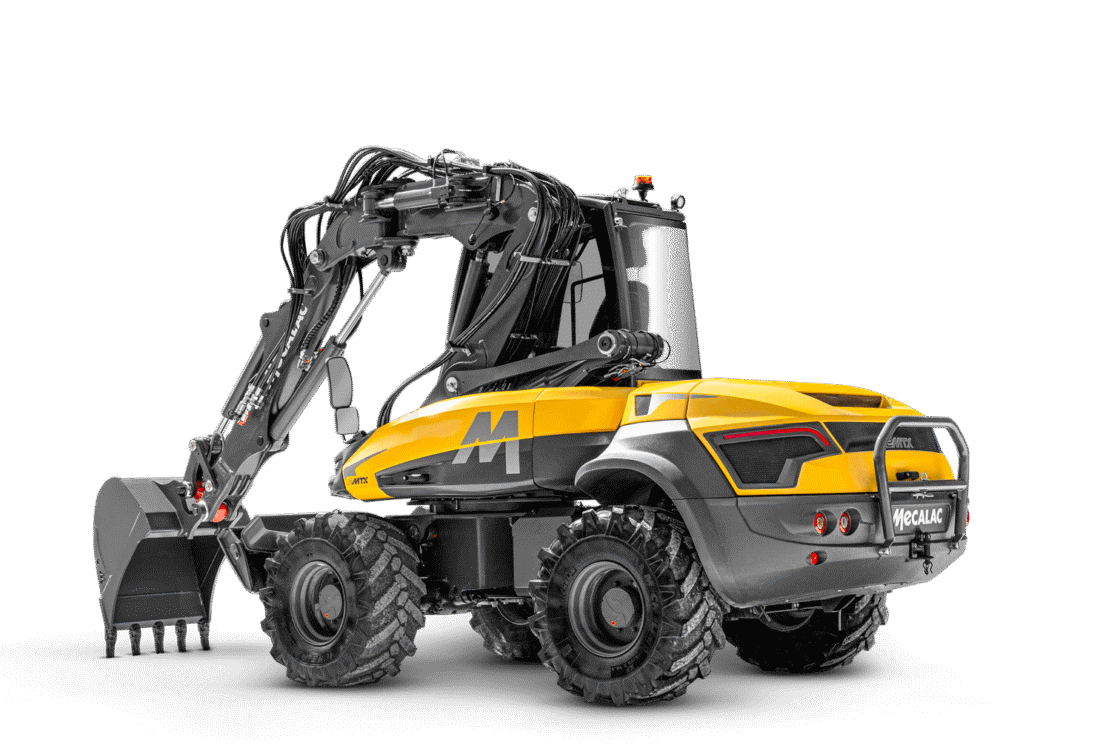

The standard offset boom allows for trenching alongside the machine

Exceptionally compact superstructure makes it possible to work on one side of the road

Automatic retractable step makes boarding easy and safe

The cab door slides open making it possible to swing 360° with the door open. Also, the door is equipped with a sliding window and the front crane can be fully opened. As standard, the 12 MTX also has a roof hatch that can be opened.

A comfortable cabin equipped with lots of tinted glass for optimal all-round visibility. The modern cabin also features easy controls with plenty of storage space.

technical specifications

Engine

Deutz TCD 3.6 L4 Stage V / 85 kW / 460 Nm
Dimensions

Weight 9700 KG, Width 2383 mm, Height 3064 mm, Turning radius 4910 mm
Tires

Comes standard on 405/70-20. Optional 560/45 R22.5, 600/50 R22.5, and 710/40 R22.5.
Quick change

Type Mecalac Connect, MS50, Engcon QS45.
Standard equipped with

32 km/h enclosed hydrostatic drive, maximum speed control, cruise control, self-locking front and rear axles, articulated steering with pendulum axle, two independently controlled outriggers, auxiliary function proportionally adjustable, 6 hydraulic attachments programmable, hose break for crane book, air conditioning, camera on side and rear of cab, toolbox in superstructure, DAB+ radio, 3 LED working lights on cab and a flashing light.
Optional

Additional hydraulic functions, load compensator, divisible sliding blade, various towing hooks, tipper function, engine hood protection bracket, hydraulic reversible cooling fan, automatic central lubrication system on upper and lower carriage, superstructure of vacuum unit, various LED working lights, shovel support, bluetooth car kit, wide assortment of equipment pieces.

In Action

PRACTICE

Driving movements do not affect the boom movement because of the separate hydraulic system

High lifting force and great stability

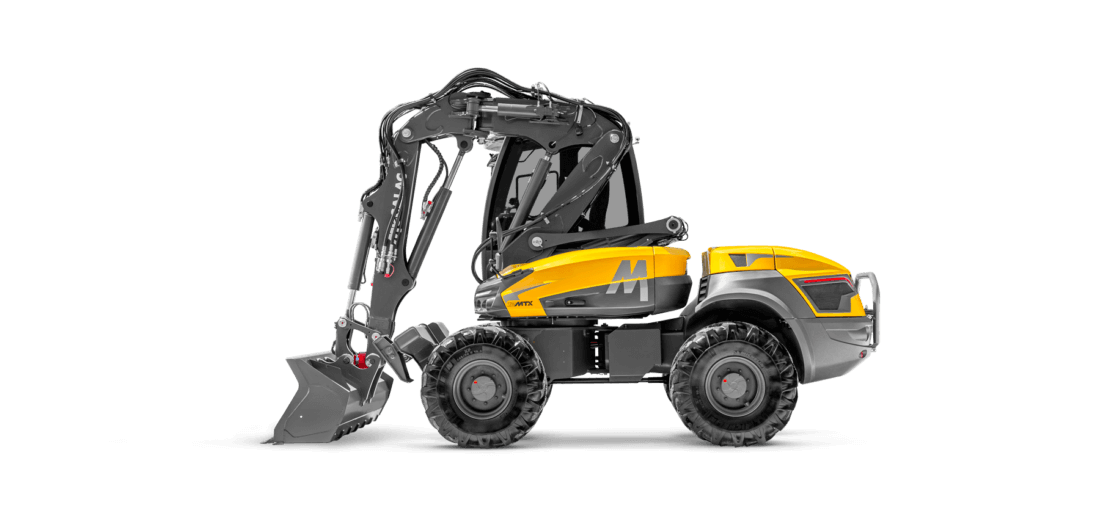

Deployable as a 100% swing loader

Also 100% usable as an articulated loader, closed travel circuit ensures large pushing force on the wheels

Articulated steering provides great off-road capability

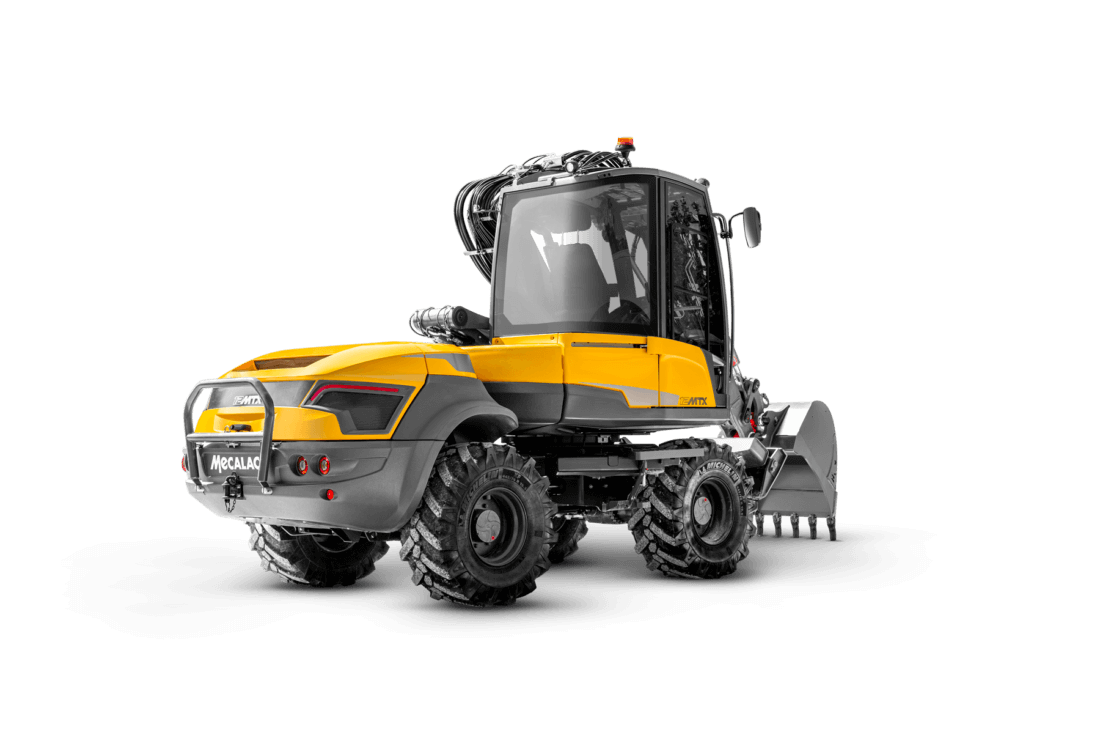

Loading and unloading also possible at rear

Large reach combined with extension mast makes loading trucks easy and fast

Compactness allows working in narrow paths

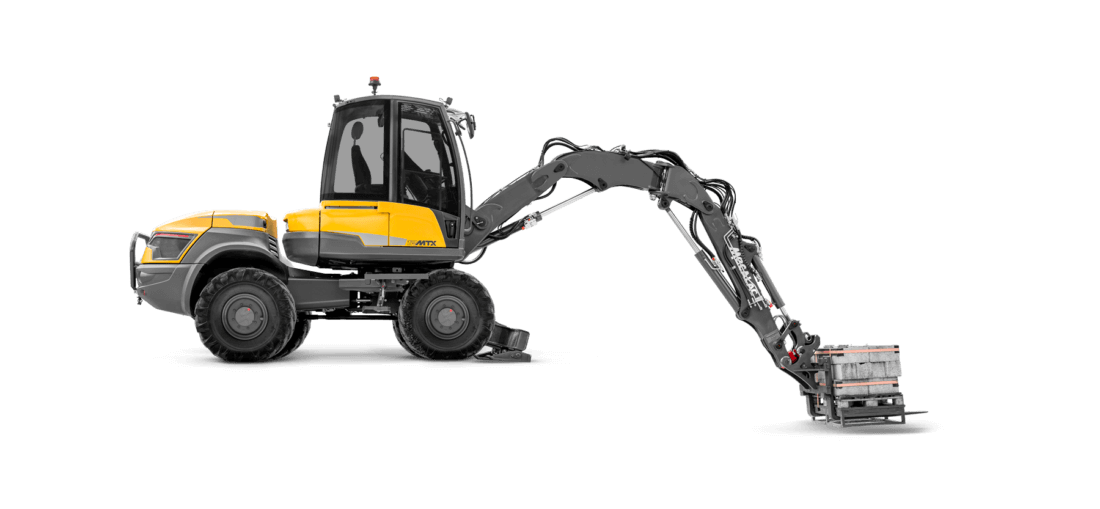

With a pallet fork installation, the 12 MTX becomes a rough terrain lifter with ability to load up to 6 meters in height and 3 meters below ground level

Many attachments are available as implement carriers
