Strong and multi-purpose

The Mecalac MWR series is designed for versatile work where a compact and strong machine is needed. The low center of gravity and the unique Mecalac boom next to the cab provide square stability and unprecedented lifting capacity. A load of more than 4 tons can be moved easily and close to the machine without being surprised in its stability. The travel drive is separate from the working hydraulics and, like a shovel, is driven by a hydrostat. The 4-wheel steered axles are also self-locking. This makes any terrain suitable for the 11 MWR! In short, a very strong, multi-purpose machine for all types of work.

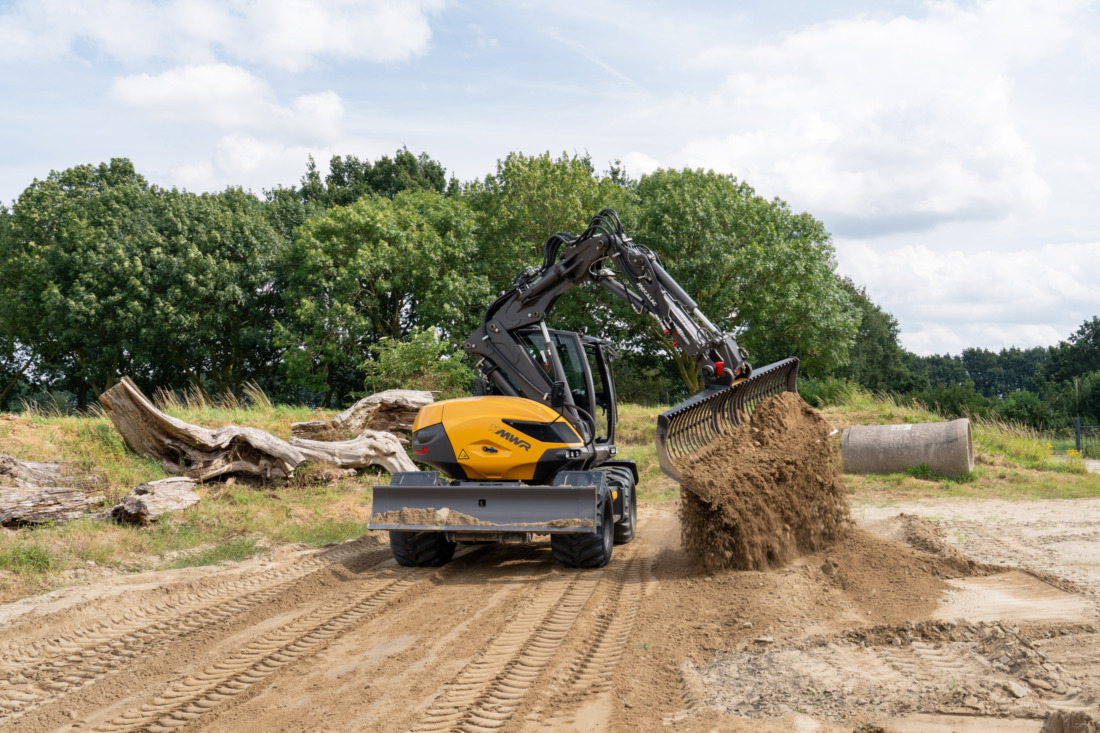

Mecalac 11 MWR
in details

Low center of gravity because the turntable is located in the chassis, with no loss of shuttle space for the wheels.

The strong outward movement of the dipper cylinder provides unprecedented lifting and pushing forces

The unique boom design allows you to work truly compact without compromising range.

Powerful travel gear and scoop handle make the machine suitable for shovel work

Low step with large steps and cleverly placed handles makes boarding safe and easy

The fuel tank is located in the undercarriage. Refueling and daily maintenance can be done from the ground.

Modern design and spacious cabin. The steering column can be adjusted at 3 points.

The cab has plenty of glass and a sliding window in the door. The front window can be opened completely.

technical specifications

  • Engine

    Deutz TCD 3.6 L4 Stage V / 55 kW / 405 Nm

  • Dimensions

    Weight 10,000 KG, Width 2500 mm, Height 3072 mm, Turning radius 3860 mm

  • Tires

    Comes standard with 600/40-22.5 tires, optional: wide tires 650/45 R22.5 or 600/50 R22.5.

  • Quick change

    Type Mecalac Connect, optional MS50, CW10 or Engcon QS45

  • Standard equipped with

    30 km/h, closed hydrostatic drive with shift-on-fly gearbox, 4-wheel steering, self-locking front and rear axles, parallel slide blade, direction reversal function, cruise control, maximum speed control, 1st and 2nd auxiliary function proportionally adjustable, 6 hydraulic attachments programmable, hose break for crane book, air conditioning, side camera, toolbox in undercarriage, DAB+ radio and beacon.

  • Optional

    Mudguards set, load compensator, outriggers, various towing hooks, tipper function, swivel tilt, additional hydraulic functions, automatic central lubrication system on upper and lower carriage, various LED working lights, bluetooth car kit, running board with clog support, wide assortment of equipment pieces.

In Action

Mecalac's MWR series is versatile in its class

PRACTICE

Compactness, versatility and maneuverability make the MWR ideal for inner-city infra and road construction work

A load of 4 tons can be moved over 360° without being surprised in stability

Compact boom and large working range: is strong near, far, and in height.

Two machines in one: cranes and shoveling

Hydrostatic travel drive and separate LS labor pump enable many applications
