Optimal efficiency concept

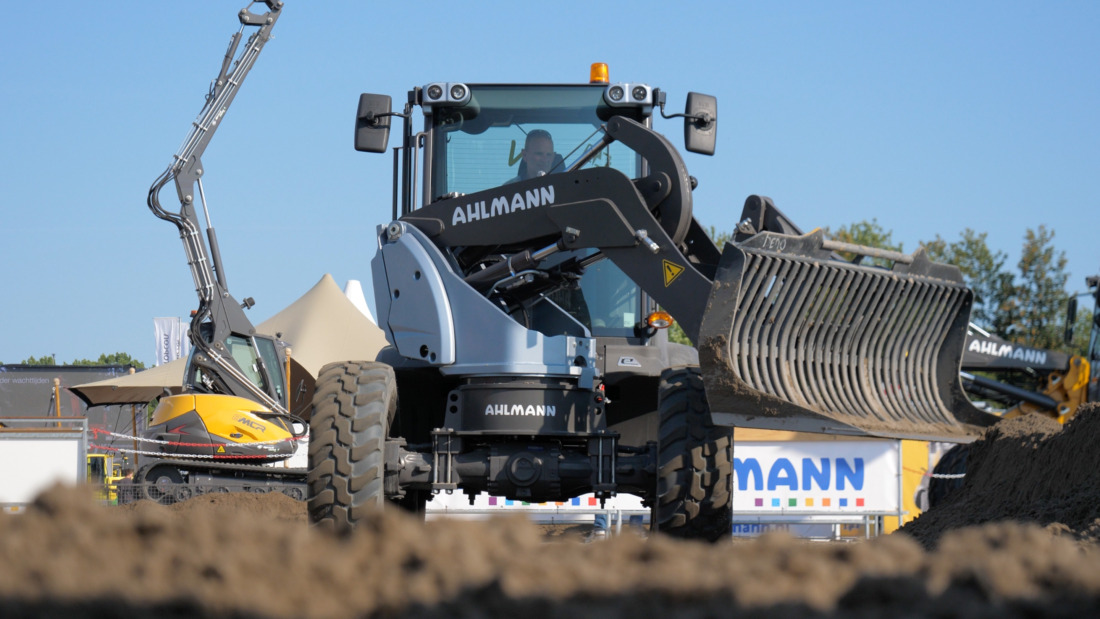

Designed for performance not inferior to its diesel variant, the AS 1000, the ES 1000 finds its way onto emission-free construction sites. A clean, quiet and efficient swing loader: ready for the future.

The ES 1000 has replaced the traditional hydrostat for a single fully electric drive motor which directly drives the gearbox. As a result, hardly any energy is lost to transmissions and kWh's are optimally utilized. The swing boom allows efficient work in compact spaces and reduces unnecessary travel movements.

Driving, lifting and slewing can be operated simultaneously without loss of speed, just as you have always been used to from Ahlmann.

Ahlmann ES 1000
in details

Daily check points clearly visible under the wide-opening hood

All parameters are clearly visible on the control screen as well as the camera on the back of the cab.

A swing loader needs less space at work

Spacious cabin with plenty of visibility all around. Front window continuous into skylight.

Compact and agile: turning radius = 3,450mm

technical specifications

  • Battery

    NorthVolt Lithium-ion NMC battery pack 94 kWh

  • Power

    Voltage 700 volts. electric motors: drive (64 kW), slew (8 kW), boom (24 kW), cooling (6 kW), heating (6 kW)

  • Charging and discharging

    Charging 22kW (32A, 400V) in four hours 100% charged.

    Charging 11kW (16A, 400V) in eight hours 100% charged.

    Operating time (depending on use): 8 hours with 1 hour of charging in between

  • Dimensions

    Width 1990 mm, Height 2380 mm, Turning radius 3670 mm

  • Tires

    Standard delivered with 405/70 R20 tires, optional: wide tires Nokian 560/45 R22.5

  • Quick change

    Type Ahlmann AZ 6/85(t)/95(e/f)

  • Standard equipped with

    25 km/h, Low-Noise working hydraulics, 1st and 2nd auxiliary function proportional. Air conditioning, skylight, Grammer seat, LED work lights on boom and cab, rear camera on cab.

  • Optional

    Hose break valves, continuous flow on extra function, central lubrication, air suspension seat, wide range of equipment pieces.

PRACTICE

Good visibility and easy positioning with pallet forkwork

90° swivel with 100% stability

Wide application of attachments possible

The swing loader typifies itself as an ideal machine for infra work
