Champion on the square meter

Over the years, workspaces have become tighter and desired loading heights have increased. With its 11 ton operating weight and exceptionally high dump height, the machine is designed to be very compact, making it ideal for infra-, agricultural contracting and industrial environments where space is limited. Due to the rigid frame and 4-wheel steering, a heavy load can be driven while swiveling and steering without loss of stability. This makes the machine very maneuverable but also certainly safe to work with. Combined with the 136 hp Deutz engine, this makes it a machine with large capacities in compact spaces.

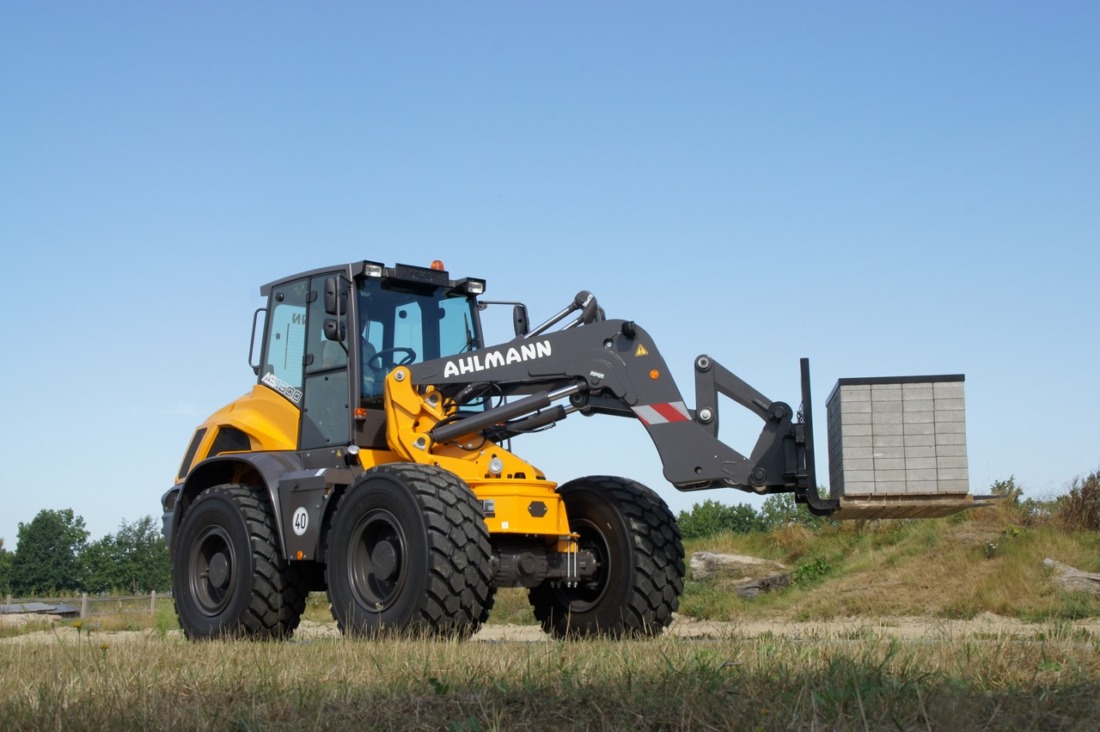

Ahlmann AS 1600
in details

4,000 kg lifting capacity over the entire swing range

All functions are controlled with one joystick

Lower bucket pin height 3,995 mm.

XL boom possible for maximum tipping height

Lots of visibility all around, opening skylight, and side windows.

Spacious cabin with plenty of storage options

Standard equipped with reversing camera which can also be aimed at the tow bar

Compact and agile: turning radius = 4,350mm

technical specifications

  • Engine

    Deutz TCD 3.6 L4 Stage V / 100 kW / 500 Nm

  • Dimensions

    Width 2450 mm, Height 3085 mm, Turning radius 4350 mm

  • Tires

    Standard delivered with 17.5R 22.5 tires, optional: wide tires 550/65 R25

  • Quick change

    Type Ahlmann AZ 14(t)/150(e/f)

  • Standard equipped with

    40km/h hydrostatic with 3 gears, shiftable under load. M-drive hand throttle/ripper pedal. Load Sensing working hydraulics. 1st and 2nd auxiliary function proportional on joystick, oil flow adjustable. Load compensator, Air conditioning, Grammer seat, LED work lights on boom and rear on cab, rear camera, radio DAB+. Storage compartment under left step.

  • Optional

    XL boom, fan reversible, hose break valves, continuous flow on additional function, automatic central lubrication, various towing hooks, air suspension seat, diesel fill pump, additional beacon and work lights, and a wide assortment of equipment items.

In Action

AS 1600, champion on the square meter

PRACTICE

No unnecessary twisting in the sand bed due to slewing

Contractor version with dual air and grass plate

Spacious cab with great view of work

XXL boom extension height +0.25m

Wide application of attachments possible
